S45 line offers LED and Laser sensors in standard miniature housing most largely diffused in European marke
Specification
Overview

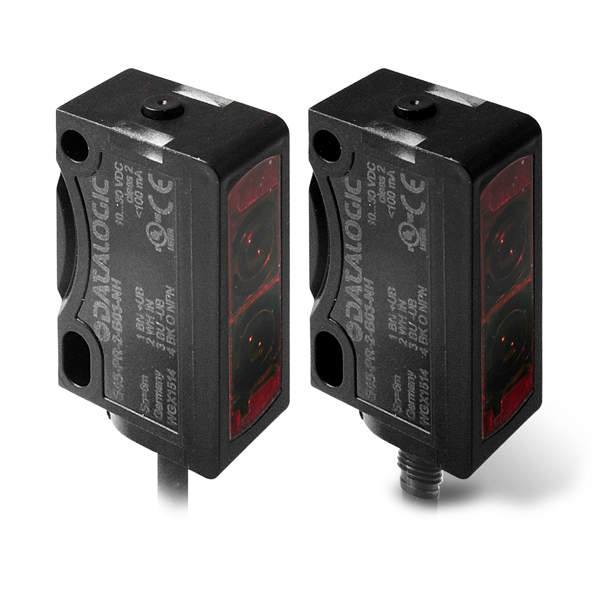

The newest high performance S45 has been developed in the standard miniature housing most largely diffused in Europe. Space and cost saving, even with high performance models, including Laser and distance sensor.
Diffuse proximity 800 mm and Laser 250 mm Bkgd suppr 200 or 400 mm and Laser 120 mm RRX pol 6 m, Laser 13 m, Coaxial 2 m Through-beam 13 m and Laser 18 m Distance sensor 20-80 mm or 30-200 mm
34x20x12mm
IP 67 IP69K
10…30Vdc
Red LED Red Laser class 1 RGB or White LED emission contrast sensor
NO-NC outputs with 2m Cable or M8 connector
OPTO ASIC
plastic case with holes on back side (European standard)
