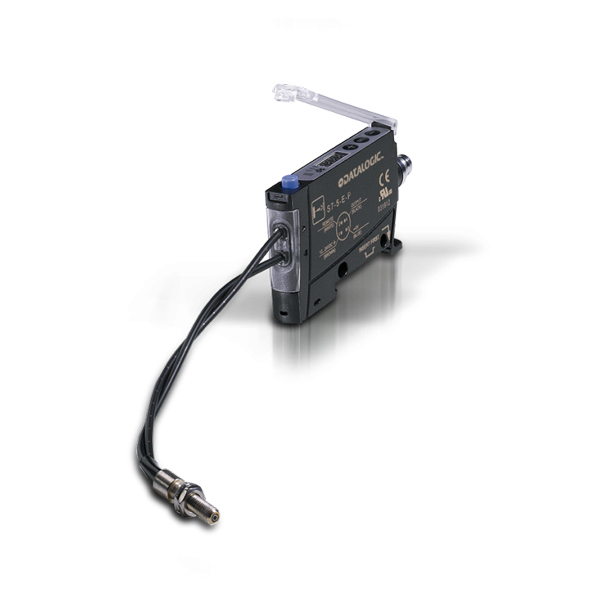

S7 high resolution amplifiers are suggested for the detection of small objects, through fibre optic cable
Specification
Overview
S7 high resolution amplifiers are suggested for the detection of small objects, through fibre optic cable, in confined space, in presence of high temperature, with the sensor mounted in cabinet or far from object to detect.
Diffuse fiber optics 25, 50, 100 mm Through-beam fiber optics 75, 150, 300 mm Switching Freq. 1kHz, Fast 5kHz, Ultra-fast 10kH
10x65x40mm
IP65 IP60 (trimmer version)
12…24Vdc
Red or White LED emission for contrast detection
NO-NC NPN or PNP output 2m cable M8 connector 4 poles
uC
ABS
4-digit display and teach-in or trimmer setting 10 bits (1024 points) or 12 bits (4096 points) res.
