S8 is born to solve the hardest detection applications: object too small, too fast, too clear, too shiny, etc
Specification
Overview

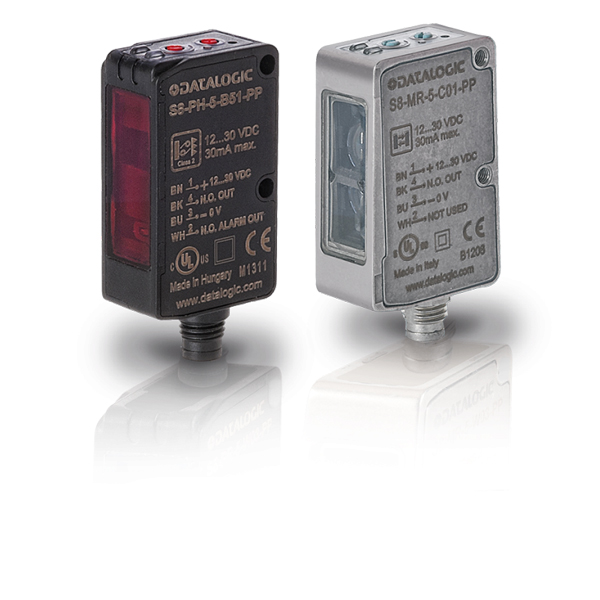

S8 line offer extremely high performances in a very compact case, also IP69K stainless steel, including an unique patented models for Clear detection.
Born to solve the hardest detection applications: target object too small, too fast, too clear, too shiny, too aggressive…
Background suppr. 50-300 mm, Laser 20-200 mm Background suppr. for Clear and Shinly objects RRX pol. 5m, Laser 10 m, Coaxial for Transp. 2 m Contrast sensor 6-12 mm, 25 kHz switch. freq. Luminescent sensor 10-30 mm, 2 kHz switch. freq.
42x25x14mm
IP 67 IP 69K
10…30Vdc
Red LED IR LED Red Laser Class 1 White LED Contrast UV LED Luminescence RGB or White LED emission contrast sensor
PNP or NPN N.O. M8 4poles Pig Tail M12 4poles
Reiforced ABS plastic case Metal case in Stainless Steel AISI 316L Ecolab and Diversey certification industrial detergents
