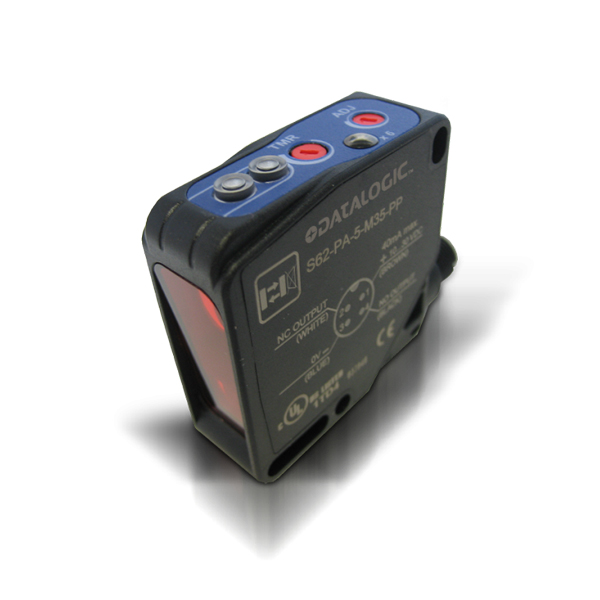

S62 offers improved performance in the standard 50x50mm compact case, ranging from LED to Laser models
Specification
Overview
S62 line in 50x50 Standard “One for All” case offers improved performance with a complete range and standardization of the same mechanical features for all optic functions, from basic to advanced Laser.
Diffuse proximity 90 or 200 cm, Laser 90 cm Bkgd suppr 30, 60, 120, 200 cm, Laser 15, 35 cm Retroreflex 13 m, Polarized 8 m, Laser 20 m Through-beam 25 m
50x50x18mm
IP 67
10-30 Vdc Multivoltage 24-240Vac/24-60Vdc
Red LED IR LED Red Laser Class 1 White LED Contrast UV LED Luminescence
Version with NO-NC NPN or PNP output Relay output 2m cable or M12 rotatable connector
